SQL Server xp_regread Stored Procedure to Read Registry Key Values


xp_regread extended stored procedure can be used for reading the registry value of a registry key
Although it is very simple to use xp_regread SQL procedure, since it is one of the undocumented stored procedures which are unsupported by Microsoft, it is not recommended to used xp_regread to read the value of a registry key on productive systems.





xp_regread SQL Script to Find SQL Server Port Number

Here is the sql codes of a sample xp_regread SQL procedure statement to find TCP port number that the current SQL Server instance is configured.

SELECT @@SERVERNAME AS ServerName, @@SERVICENAME AS ServiceName

DECLARE @value VARCHAR(20)
DECLARE @key VARCHAR(100)

IF ISNULL(CHARINDEX('\', @@SERVERNAME, 0), 0) > 0
BEGIN

SET @key = 'SOFTWARE\Microsoft\Microsoft SQL Server\' +
   @@servicename +
   '\MSSQLServer\SuperSocketNetLib\Tcp'

END
ELSE
BEGIN

SET @key = 'SOFTWARE\MICROSOFT\MSSQLSERVER\MSSQLSERVER\SUPERSOCKETNETLIB\TCP'

END

SELECT @KEY as [Key]
EXEC master..xp_regread
   @rootkey = 'HKEY_LOCAL_MACHINE',
   @key = @key,
   @value_name = 'TcpPort',
   @value = @value OUTPUT

SELECT 'Port Number : ' + CAST(@value AS VARCHAR(5)) AS PortNumber
Code

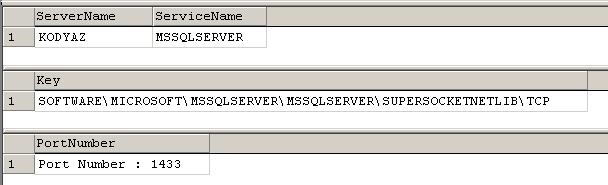

And the output of the above sql script which uses xp_regread sql stored procedure to find SQL Server 2008 or any other SQL Server versions TCP port number by reading registry key value pairs.

xp_regread sql stored procedure to read registry key value

If you get RegQueryValueEx() error when you execute xp_regread sql procedure, you can read the article xp_regread - RegQueryValueEx() returned error 2, 'The system cannot find the file specified.'
