How to Open PopUp_To_Confirm Screen When Delete Function Key is Pressed for Confirmation


In this ABAP tutorial, ABAP developers will find a sample ABAP report which displays a popup confirmation screen when delete function key is pressed.

In the below SAP screenshot, you can see 4 function keys each for Create, Change, Display and Delete.

abap-popup_to_confirm-delete-confirmation

Function keys are declared using : SELECTION-SCREEN: FUNCTION KEY 1. ABAP code.
Here is the ABAP codes block used for function key declaration.

SELECTION-SCREEN: FUNCTION KEY 1.
SELECTION-SCREEN: FUNCTION KEY 2.
SELECTION-SCREEN: FUNCTION KEY 3.
SELECTION-SCREEN: FUNCTION KEY 4.
Code

The icons and the text of each function key is set using : sscrfields-functxt_01
Here is the ABAP code for text and icon settings of each function key.
For example icon_create is "@0Y@" and maps to create new document icon.
For more information about SAP icons please refer to SAP tutorial Display Icons using ABAP Code - SAP Icon List.

CONCATENATE icon_create text-fc1 INTO gv_button_text. " '@0Y@'
sscrfields-functxt_01 = gv_button_text.
Code

In the ABAP codes section AT SELECTION-SCREEN, the value of ABAP field sscrfields-ucomm is controlled to define which SAP function key is pressed.
In our example to display the delete confirmation screen before deleting the ABAP table record from database table, I used the popup_to_confirm function call code where the sscrfields-ucomm value which stores the returned function key code is "FC04"

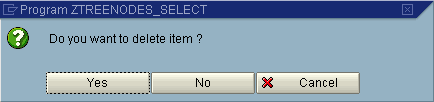

popup_to_confirm-deletion-confirmation-pop-up-screen-abap

The ABAP function call returns the value of the pressed button at the delete confirm screen.
In order to check which button is pressed on the delete confirm screen, I defined a local variable lv_answer as type c with length 1.
For the above screen shot if the value of the local variable lv_answer is equal to 1 then this means the YES button is clicked.
A value of 2 means NO button is pressed.
And if the value of lv_answer is 3 then the CANCEL button is pressed by the user on the confirm delete screen.





Sample ABAP Code for PopUp_To_Confirm

Here is the ABAP codes of the example ABAP report which uses the Call Function POPUP_TO_CONFIRM for confirming delete operation when DELETE function key is pressed.

*&---------------------------------------------------------------------*
*& Report ZTREENODES_SELECT *
*&---------------------------------------------------------------------*

INCLUDE ztreenodes_select_top . " global Data
INCLUDE ztreenodes_select_cl1 . " local class
INCLUDE ztreenodes_select_o01 . " PBO-Modules
INCLUDE ztreenodes_select_i01 . " PAI-Modules
INCLUDE ztreenodes_select_f01 . " FORM-Routines

TYPE-POOLS : icon.

TABLES : sscrfields. " Fields on selection screens
DATA : gv_button_text(18) TYPE c.


SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME TITLE text-110.
PARAMETERS :
  p_vkorg LIKE vbak-vkorg,
  p_tree LIKE ztrees-treename.
SELECTION-SCREEN END OF BLOCK b1.

* Buttons for action
SELECTION-SCREEN: FUNCTION KEY 1.
SELECTION-SCREEN: FUNCTION KEY 2.
SELECTION-SCREEN: FUNCTION KEY 3.
SELECTION-SCREEN: FUNCTION KEY 4.


START-OF-SELECTION.

END-OF-SELECTION.

INITIALIZATION.

  " Function Keys
  CONCATENATE icon_create text-fc1 INTO gv_button_text. " '@0Y@'
  sscrfields-functxt_01 = gv_button_text.

  CONCATENATE icon_change text-fc2 INTO gv_button_text. " '@0Z@'
  sscrfields-functxt_02 = gv_button_text.

  CONCATENATE icon_display text-fc3 INTO gv_button_text. " '@10@'
  sscrfields-functxt_03 = gv_button_text.

  CONCATENATE icon_delete text-fc4 INTO gv_button_text. " '@11@'
  sscrfields-functxt_04 = gv_button_text.

  sscrfields-functxt_05 = gv_button_text.

AT SELECTION-SCREEN.

  CLEAR gs_ztrees.
  " Control Function Key Return Codes
  CASE sscrfields-ucomm.
    WHEN 'FC01'. " Function Key 1 - CREATE

      gs_ztrees-treename = p_tree.

      CALL SCREEN 50 STARTING AT 10 6 ENDING AT 62 12.

    WHEN 'FC02'. " Function Key 2 - CHANGE

      SELECT SINGLE * FROM ztrees
        INTO gs_ztrees
        WHERE treename = p_tree.

      IF gs_ztrees IS INITIAL.
      ELSE.
        CALL SCREEN 50 STARTING AT 10 6 ENDING AT 62 12.
      ENDIF.

    WHEN 'FC03'. " Function Key 3 - DISPLAY

      SELECT SINGLE * FROM ztrees
        INTO gs_ztrees
        WHERE treename = p_tree.

      IF gs_ztrees IS INITIAL.
      ELSE.
        " TO-DO open Read/Only
        CALL SCREEN 50 STARTING AT 10 6 ENDING AT 62 12.
      ENDIF.

    WHEN 'FC04'. " Function Key 4 - DELETE

      SELECT SINGLE * FROM ztrees
        INTO gs_ztrees
        WHERE treename = p_tree.

      IF gs_ztrees IS INITIAL.
      ELSE.

        DATA : lv_answer(1) TYPE c.

        " Add Confirmation
        CALL FUNCTION 'POPUP_TO_CONFIRM'
          EXPORTING
            text_question = 'Do you want to delete item ?'
            "text-005 " Are you certain...?
          IMPORTING
            answer = lv_answer
          EXCEPTIONS
            text_not_found = 1
            OTHERS = 2.

        IF sy-subrc <> 0. " Function call failed.
          MESSAGE i000 WITH text-006. " Func call failed contact IS
          STOP.
        ENDIF.
        " lv_answer - 1:YES 2:NO 3:CANCEL
        IF lv_answer NE '1'.
          MESSAGE i000 WITH text-007. " Proc cancelled - no update
          STOP.
        ELSEIF lv_answer EQ '1'.
          DELETE FROM ztrees WHERE treeid = gs_ztrees-treeid.
        ENDIF.
        " Confirmation (END)

      ENDIF.

    WHEN OTHERS.
  ENDCASE.
Code
